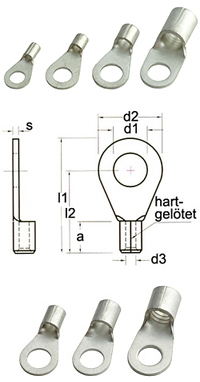

Ring-Kabelschuhe DIN 46234 unisoliert
Ring-Kabelschuh DIN 46234 - unisoliert
und Sonderausführung
- Temperaturbereich: bis +125°C
- Belastbarkeit: max. 600V
- Solderless Terminals non-insulated
- Material: Elektrolyt-Kupfer, hartgelötet, galvanisch verzinnt
- RoHS konform
- Charakteristik: Rillenprägung im Hülsenbereich
Maßänderungen im Sinne des technischen Fortschritts vorbehalten.
Produktblatt herunterladen
WEHNER-Produktblatt unisolierte Ringkabelschuh DIN 46234.pdf
Unisolierte Ringkabelschuhe
| Bild | Produkt | Beschreibung | Preis | |
|---|---|---|---|---|
|
RKS-0527 |
mm² = 0,14-0,5 | AWG = 26-22 d1 = 2,7 | d2 = 5,0 | l2 = 10,0 |
Produkt Details | |
|
|
RKS-0532 |
mm² = 0,14-0,5 | AWG = 26-22 d1 = 3,2 | d2 = 5,0 | l2 = 10,0 |
Produkt Details | |
|
|
RKS-0537 |
mm² = 0,14-0,5 | AWG = 26-22 d1 = 3,7 | d2 = 6,0 | l2 = 12,0 |
Produkt Details | |
|
|
RKS-0543 |
mm² = 0,14-0,5 | AWG = 26-22 d1 = 4,3 | d2 = 6,5 | l2 = 12,0 |
Produkt Details | |
|
|
RKS-0553 |
mm² = 0,14-0,5 | AWG = 26-22 d1 = 5,3 | d2 = 8,0 | l2 = 12,0 |
Produkt Details | |
|
|
RKS-1532 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 3,2 | d2 = 5,5 | l2 = 9,2 |
Produkt Details | |
|
|
RKS-1537 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 3,7 | d2 = 6,0 | l2 = 11,0 |
Produkt Details | |
|
|
RKS-1541 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 4,1 | d2 = 6,0 | l2 = 10,5 |
Produkt Details | |
|
|
RKS-1543 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 4,3 | d2 = 8,0 | l2 = 12,0 |
Produkt Details | |
|
|
RKS-1551 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 5,1 | d2 = 8,0 | l2 = 11,6 |
Produkt Details | |
|
|
RKS-1553 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 5,3 | d2 = 10,0 | l2 = 13,0 |
Produkt Details | |
|
|
RKS-1561 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 6,5 | d2 = 10,0 | l2 = 13,0 |
Produkt Details | |
|
|
RKS-1565 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 6,5 | d2 = 12,0 | l2 = 14,2 |
Produkt Details | |
|
|
RKS-1581 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 8,4 | d2 = 12,0 | l2 = 14,2 |
Produkt Details | |
|
|
RKS-1585 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 8,5 | d2 = 14,0 | l2 = 17,0 |
Produkt Details | |
|
|
RKS-1510S |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 10,5 | d2 = 14,0 | l2 = 17,0 |
Produkt Details | |
|
|
RKS-1510 |
mm² = 0,5-1,5 | AWG = 20-16 d1 = 10,5 | d2 = 18,0 | l2 = 18,0 |
Produkt Details | |
|
|
RKS-2532 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 3,2 | d2 = 6,0 | l2 = 11,0 |
Produkt Details | |
|
|
RKS-2537 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 3,7 | d2 = 6,0 | l2 = 11,0 |
Produkt Details | |
|
|
RKS-2541 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 4,1 | d2 = 6,8 | l2 = 11,6 |
Produkt Details | |
|
|
RKS-2543 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 4,3 | d2 = 8,0 | l2 = 12,0 |
Produkt Details | |
|
|
RKS-2551 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 5,1 | d2 = 8,0 | l2 = 12,1 |
Produkt Details | |
|
|
RKS-2553 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 5,3 | d2 = 10,0 | l2 = 14,0 |
Produkt Details | |
|
|
RKS-2565 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 6,5 | d2 = 11,0 | l2 = 16,0 |
Produkt Details | |
|
|
RKS-2585 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 8,5 | d2 = 14,0 | l2 = 17,0 |
Produkt Details | |
|
|
RKS-2510S |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 10,5 | d2 = 15,0 | l2 = 17,0 |
Produkt Details | |
|
|
RKS-2510 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 10,5 | d2 = 18,0 | l2 = 18,5 |
Produkt Details | |
|
|
RKS-2513 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 13,0 | d2 = 19,0 | l2 = 20,0 |
Produkt Details | |
|
|
RKS-2516 |
mm² = 1,1-2,6 | AWG = 16-14 d1 = 17,2 | d2 = 27,0 | l2 = 27,0 |
Produkt Details | |
|
|
RKS-4643 |
mm² = 2,7-6,0 | AWG = 12-10 d1 = 4,3 | d2 = 8,0 | l2 = 14,0 |
Produkt Details | |
|
|
RKS-4653 |
mm² = 2,7-6,0 | AWG = 12-10 d1 = 5,3 | d2 = 10,0 | l2 = 15,0 |
Produkt Details | |
|
|
RKS-4665 |
mm² = 2,7-6,0 | AWG = 12-10 d1 = 6,5 | d2 = 11,0 | l2 = 16,0 |
Produkt Details | |
|
|
RKS-4685 |
mm² = 2,7-6,0 | AWG = 12-10 d1 = 8,5 | d2 = 14,0 | l2 = 19,0 |
Produkt Details | |
|
|
RKS-4610 |
mm² = 2,7-6,0 | AWG = 12-10 d1 = 10,5 | d2 = 18,0 | l2 = 21,0 |
Produkt Details | |
|
|
RKS-4612 |
mm² = 2,7-6,0 | AWG = 12-10 d1 = 13,0 | d2 = 18,0 | l2 = 21,0 |
Produkt Details | |
|
|
RKS.10-4 |
mm² = 6-10 | AWG = 8 d1 = 4,3 | d2 = 10,0 | l2 = 16,0 |
Produkt Details | |
|
|
RKS.10-5 |
mm² = 6-10 | AWG = 8 d1 = 5,3 | d2 = 10,0 | l2 = 16,0 |
Produkt Details | |
|
|
RKS.10-6 |
mm² = 6-10 | AWG = 8 d1 = 6,5 | d2 = 11,0 | l2 = 17,0 |
Produkt Details | |
|
|
RKS.10-8 |
mm² = 6-10 | AWG = 8 d1 = 8,4 | d2 = 14,0 | l2 = 20,0 |
Produkt Details | |
|
|
RKS.10-10 |
mm² = 6-10 | AWG = 8 d1 = 10,5 | d2 = 18,0 | l2 = 21,0 |
Produkt Details | |
|
|
RKS.10-12 |
mm² = 6-10 | AWG = 8 d1 = 13,0 | d2 = 22,0 | l2 = 23,0 |
Produkt Details | |
|
|
RKS.16-5 |
mm² = 10-16 | AWG = 6 d1 = 5,3 | d2 = 10,0 | l2 = 20,0 |
Produkt Details | |
|
|
RKS.16-6 |
mm² = 10-16 | AWG = 6 d1 = 6,5 | d2 = 11,0 | l2 = 20,0 |
Produkt Details | |
|
|
RKS.16-8 |
mm² = 10-16 | AWG = 6 d1 = 8,4 | d2 = 14,0 | l2 = 22,0 |
Produkt Details | |
|
|
RKS.16-10 |
mm² = 10-16 | AWG = 6 d1 = 10,5 | d2 = 18,0 | l2 = 24,0 |
Produkt Details | |
|
|
RKS.16-12 |
mm² = 10-16 | AWG = 6 d1 = 13,0 | d2 = 22,0 | l2 = 26,0 |
Produkt Details | |
|
|
RKS.25-5 |
mm² = 16-25 | AWG = 4 d1 = 5,3 | d2 = 12,0 | l2 = 25,0 |
Produkt Details | |
|
|
RKS.25-6 |
mm² = 16-25 | AWG = 4 d1 = 6,5 | d2 = 12,0 | l2 = 25,0 |
Produkt Details | |
|
|
RKS.25-8 |
mm² = 16-25 | AWG = 4 d1 = 8,4 | d2 = 16,0 | l2 = 25,0 |
Produkt Details | |
|
|
RKS.25-10 |
mm² = 16-25 | AWG = 4 d1 = 10,5 | d2 = 18,0 | l2 = 26,0 |
Produkt Details | |
|
|
RKS.25-12 |
mm² = 16-25| AWG = 4 d1 = 13,0 | d2 = 22,0 | l2 = 31,0 |
Produkt Details | |
|
|
RKS.25-16 |
mm² = 16-25 | AWG = 4 d1 = 17,0 | d2 = 28,0 | l2 = 35,0 |
Produkt Details | |
|
|
RKS.35-6 |
mm² = 25-35 | AWG = 2 d1 = 6,5 | d2 = 15,0 | l2 = 26,0 |
Produkt Details | |
|
|
RKS.35-8 |
mm² = 25-35 | AWG = 2 d1 = 8,4 | d2 = 16,0 | l2 = 26,0 |
Produkt Details | |
|
|
RKS.35-10 |
mm² = 25-35 | AWG = 2 d1 = 10,5 | d2 = 18,0 | l2 = 27,0 |
Produkt Details | |
|
|
RKS.35-12 |
mm² = 25-35 | AWG = 2 d1 = 13,0 | d2 = 22,0 | l2 = 31,0 |
Produkt Details | |
|
|
RKS.35-16 |
mm² = 25-35 | AWG = 2 d1 = 17,0 | d2 = 27,0 | l2 = 37,0 |
Produkt Details | |
|
|
RKS.35-20 |
mm² = 25-35 | AWG = 2 d1 = 21,0 | d2 = 30,0 | l2 = 37,3 |
Produkt Details | |
|
|
RKS.50-6 |
mm² = 35-50 | AWG = 1/0 d1 = 6,5 | d2 = 18,0 | l2 = 34,0 |
Produkt Details | |
|
|
RKS.50-8 |
mm² = 35-50 | AWG = 1/0 d1 = 8,4 | d2 = 18,0 | l2 = 34,0 |
Produkt Details | |
|
|
RKS.50-10 |
mm² = 35-50 | AWG = 1/0 d1 = 10,5 | d2 = 18,0 | l2 = 34,0 |
Produkt Details | |
|
|
RKS.50-12 |
mm² = 35-50 | AWG = 1/0 d1 = 13,0 | d2 = 22,0 | l2 = 36,0 |
Produkt Details | |
|
|
RKS.50-16 |
mm² = 35-50 | AWG = 1/0 d1 = 17,0 | d2 = 28,0 | l2 = 40,0 |
Produkt Details | |
|
|
RKS.50-20 |
mm² = 35-50 | AWG = 1/0 d1 = 21,0 | d2 = 32,0 | l2 = 42,0 |
Produkt Details | |
|
|
RKS.70-6 |
mm² = 50-70 | AWG = 2/0 d1 = 6,5 | d2 = 22,0 | l2 = 38,0 |
Produkt Details | |
|
|
RKS.70-8 |
mm² = 50-70 | AWG = 2/0 d1 = 8,4 | d2 = 22,0 | l2 = 38,0 |
Produkt Details | |
|
|
RKS.70-10 |
mm² = 50-70 | AWG = 2/0 d1 = 10,5 | d2 = 22,0 | l2 = 38,0 |
Produkt Details | |
|
|
RKS.70-12 |
mm² = 50-70 | AWG = 2/0 d1 = 13,0 | d2 = 22,0 | l2 = 38,0 |
Produkt Details | |
|
|
RKS.70-16 |
mm² = 50-70 | AWG = 2/0 d1 = 17,0 | d2 = 28,0 | l2 = 42,0 |
Produkt Details | |
|
|
RKS.70-20 |
mm² = 50-70 | AWG = 2/0 d1 = 21,0 | d2 = 32,0 | l2 = 45,0 |
Produkt Details | |
|
|
RKS.95-8 |
mm² = 70-95 | AWG = 3/0 d1 = 8,4 | d2 = 24,0 | l2 = 42,0 |
Produkt Details | |
|
|
RKS.95-10 |
mm² = 70-95 | AWG = 3/0 d1 = 10,5 | d2 = 24,0 | l2 = 42,0 |
Produkt Details | |
|
|
RKS.95-12 |
mm² = 70-95 | AWG = 3/0 d1 = 13,0 | d2 = 24,0 | l2 = 42,0 |
Produkt Details | |
|
|
RKS.95-16 |
mm² = 70-95 | AWG = 3/0 d1 = 17,0 | d2 = 28,0 | l2 = 44,0 |
Produkt Details | |
|
|
RKS.95-20 |
mm² = 70-95 | AWG = 3/0 d1 = 21,0 | d2 = 32,0 | l2 = 52,0 |
Produkt Details | |
|
|
RKS.120-8 |
mm² = 95-120 | AWG = 6 d1 = 8,4 | d2 = 24,0 | l2 = 44,0 |
Produkt Details | |
|
|
RKS.120-10 |
mm² = 95-120 | AWG = 6 d1 = 10,5 | d2 = 24,0 | l2 = 44,0 |
Produkt Details | |
|
|
RKS.120-12 |
mm² = 95-120 | AWG = 6 d1 = 13,0 | d2 = 24,0 | l2 = 44,0 |
Produkt Details | |
|
|
RKS.120-16 |
mm² = 95-120 | AWG = 6 d1 = 17,0 | d2 = 28,0 | l2 = 48,0 |
Produkt Details | |
|
|
RKS.120-20 |
mm² = 95-120 | AWG = 6 d1 = 21,0 | d2 = 32,0 | l2 = 53,0 |
Produkt Details | |
|
|
RKS.150-10 |
mm² = 120-150 | AWG = 250-300 d1 = 10,5 | d2 = 30,0 | l2 = 50,0 |
Produkt Details | |
|
|
RKS.150-12 |
mm² = 120-150 | AWG = 250-300 d1 = 13,0 | d2 = 30,0 | l2 = 50,0 |
Produkt Details | |
|
|
RKS.150-16 |
mm² = 120-150 | AWG = 250-300 d1 = 17,0 | d2 = 30,0 | l2 = 50,0 |
Produkt Details | |
|
|
RKS.150-20 |
mm² = 120-150 | AWG = 250-300 d1 = 21,0 | d2 = 36,0 | l2 = 63,0 |
Produkt Details | |
|
|
RKS.185-10 |
mm² = 150-185 | AWG = 300-350 MCM d1 = 10,5 | d2 = 36,0 | l2 = 50,0 |
Produkt Details | |
|
|
RKS.185-12 |
mm² = 150-185 | AWG = 300-350 MCM d1 = 13,0 | d2 = 36,0 | l2 = 50,0 |
Produkt Details | |
|
|
RKS.185-16 |
mm² = 150-185 | AWG = 300-350 MCM d1 = 17,0 | d2 = 36,0 | l2 = 50,0 |
Produkt Details | |
|
|
RKS.240-10 |
mm² = 185-240 | AWG = 350-450 MCM d1 = 10,5 | d2 = 38,0 | l2 = 56,0 |
Produkt Details | |
|
|
RKS.240-12 |
mm² = 185-240 | AWG = 350-450 MCM d1 = 13,0 | d2 = 38,0 | l2 = 56,0 |
Produkt Details | |
|
|
RKS.240-16 |
mm² = 185-240 | AWG = 350-450 MCM d1 = 17,0 | d2 = 38,0 | l2 = 56,0 |
Produkt Details | |
